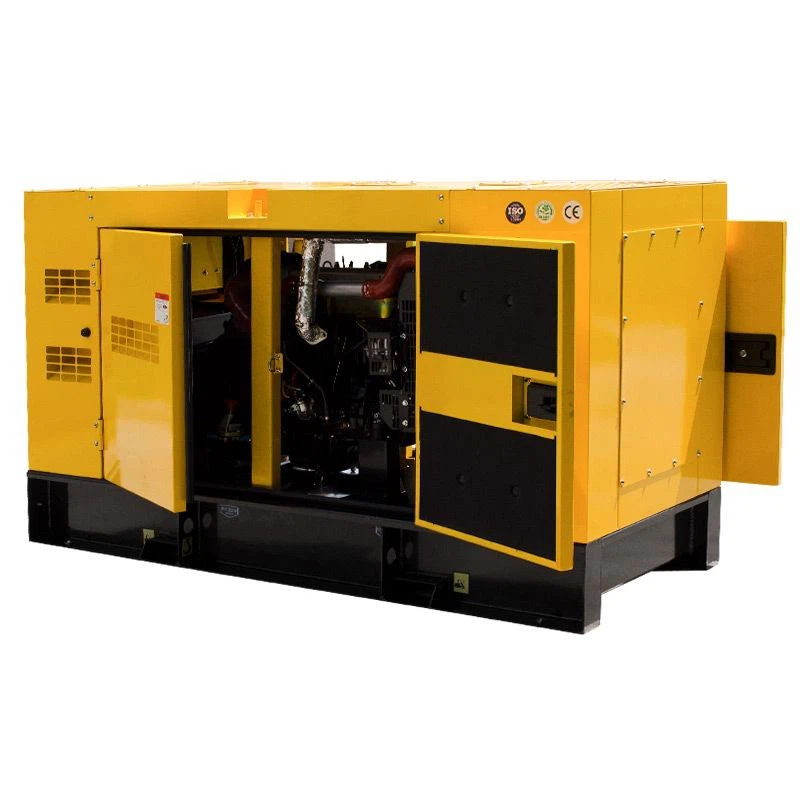

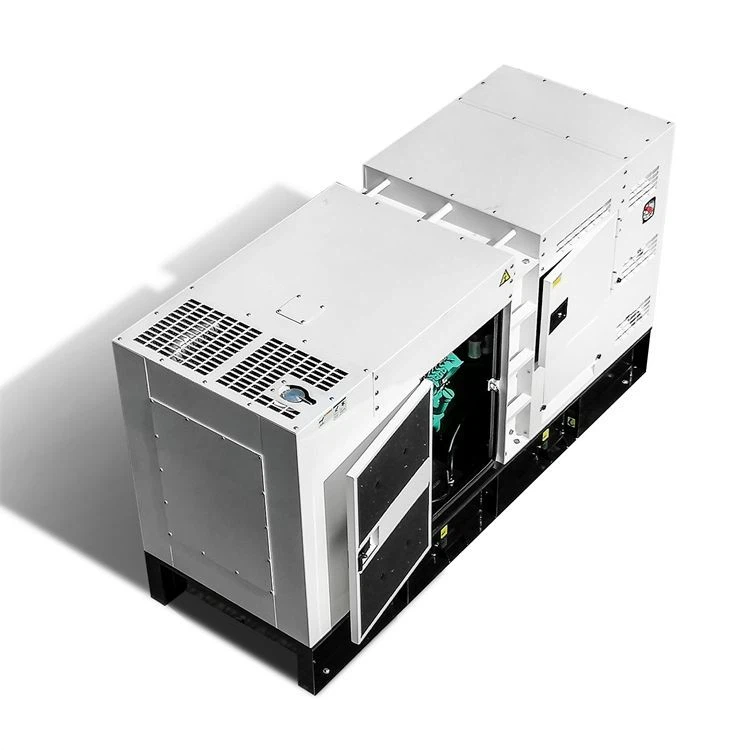

Product Overview
The 100kw Silent Diesel Generator is a high-capacity power solution engineered to provide reliable backup and prime electricity for demanding environments. As the backbone of critical infrastructure, this unit is designed for those who require substantial power output-sufficient to run large office buildings, small factories, or healthcare facilities-without the intrusive noise levels traditionally associated with high-wattage diesel engines. By integrating a heavy-duty, multi-cylinder turbocharged engine with advanced noise-reduction technology, this generator represents the pinnacle of modern power engineering.
The defining feature of the 100kw Silent Diesel Generator is its sophisticated sound-attenuated enclosure. Constructed from high-strength, galvanized steel, the canopy undergoes a multi-stage phosphate treatment and polyester powder coating to ensure maximum corrosion resistance. The interior is lined with specialized high-density, fire-retardant sound-absorbing cotton, which effectively dampens mechanical vibrations and combustion noise. To manage the significant heat generated by a 100kw engine, the unit employs a "labyrinth" airflow system. This design allows for massive cooling air intake and hot air exhaust while forcing sound waves to bounce off multiple padded surfaces, drastically reducing the external decibel level to a manageable 70-75 dB(A) at 7 meters.
Internally, the generator features a top-tier brushless alternator equipped with an Automatic Voltage Regulator (AVR). This ensures that the power produced has minimal harmonic distortion, making it safe for sensitive data servers and medical imaging equipment. The integrated digital control system provides a user-friendly interface for monitoring engine temperature, oil pressure, and load levels, with built-in protections for automatic shutdown in the event of a malfunction.
Technical Parameters
|
Feature |
Detailed Specification |
|
Rated Power (Prime) |
100 kW / 125 kVA |
|
Standby Power |
110 kW / 137.5 kVA |
|
Engine Type |
6-Cylinder, In-line, Water-Cooled, Turbocharged |
|
Aspiration |
Turbocharged & Intercooled |
|
Rated Voltage |
400V / 230V (Adjustable) |
|
Frequency / Speed |
50Hz / 1500 RPM (or 60Hz / 1800 RPM) |
|
Noise Level (at 7m) |
≤ 72 - 75 dB(A) |
|
Fuel Tank Capacity |
250 - 300 Liters (approx. 8-10 hours at full load) |
|
Governor Type |
Electronic Governing System |
|
Alternator |
Brushless, IP23, H-Class Insulation |
|
Control Panel |
Digital LCD with AMF/Remote Start Capability |
|
Dimensions (L x W x H) |
3200 x 1150 x 1750 mm |
Product Applications
The 100kw Silent Diesel Generator is incredibly versatile, serving as a primary or secondary power source across various high-stakes sectors:
Industrial & Manufacturing:
For factories operating precision machinery or assembly lines, a power surge or outage can lead to expensive material waste. This unit provides the necessary amperage to maintain production schedules while its silent canopy allows it to be placed near the facility without disrupting worker communication.
Commercial Real Estate:
Large shopping centers, hotels, and office complexes rely on this model to maintain elevators, emergency lighting, and HVAC systems during grid failures, ensuring occupant safety and business continuity.
Data Centers & Telecommunications:
In an era of digital reliance, this generator acts as a silent guardian for server farms. The stable electrical output prevents data corruption, while the low-noise design meets strict urban environmental codes.
After-Sales Service
We understand that a 100kw power system is a significant investment, which is why we offer a comprehensive after-sales support package:
Global Warranty:
We provide a 12-month or 1,000-hour warranty, covering all major components.
Technical Support:
Our engineers offer 24/7 remote diagnostic assistance and on-site commissioning to ensure your system is integrated perfectly with your Automatic Transfer Switch (ATS).
Parts & Maintenance:
We maintain a dedicated inventory of genuine filters, belts, and gaskets, ensuring that your routine maintenance is never delayed by logistics.
